DRY MITER CUTTER 9410ND

METAL CUTTING MITER SAW with Ø 255mm / 60T saw blade & fixation set

 The precise miter saw for metal: Ideal for cutting tubes & profiles made of stainless steel, steel,non ferrous metal, plastic and composite materials

Fine cuts in soft and sensitive materials


No lubrication needed thanks to our DryCutting technology, no manual deburring


Accurately adjustable miter cut of  -45° - 0° -  +45°
Secure fixing with double 3-step quick release system

Robust aluminum construction, strong and light: only 19 kg !
The solution for dry wall construction!


Delivered with 255mm / 60T carbide tipped saw blade
& "K" fixation set for pipes Ø 30 - 70mm


Power input 1.500 W
Voltage 230V/50Hz or 115V/60Hz
No load speed 1.600 min-1
Net weigth 19 kg
Blade size 255 mm
Cable length 2,5 m
Ref. 600651





DATA SHEETS & SPARE PARTS

Maximum cutting capacities in mm

 Material
  Square
 Rectangular
 Round
 90° Schnitt
70 x 70 100 x 70
Ø 70
 45° Schnitt  60 x 60
60 x 60
Ø 60

ACCESSORIES & SETS

Odoo • Image and Text
Odoo • Image and Text

Stand for the DMC 9410ND

Stand for a comfortable and safe work space.

- Adjustable material support
- Length stopper with integrated scale 300mm

- Adjustable feet to compensate irregularities on the floor

Art.Nr. 600599




Odoo • Image and Text
Odoo • Image and Text

"K" - Fixation set
(Included in scope of delivery)

For pipes Ø 30 - 70mm
For a safer and more stable sawing process.

Art.Nr. 600653


SET
Description
Reference E-Shop

++

  DMC 9410ND with 255mm / 60T saw blade &"K" - fixation set
600651

SAW BLADES

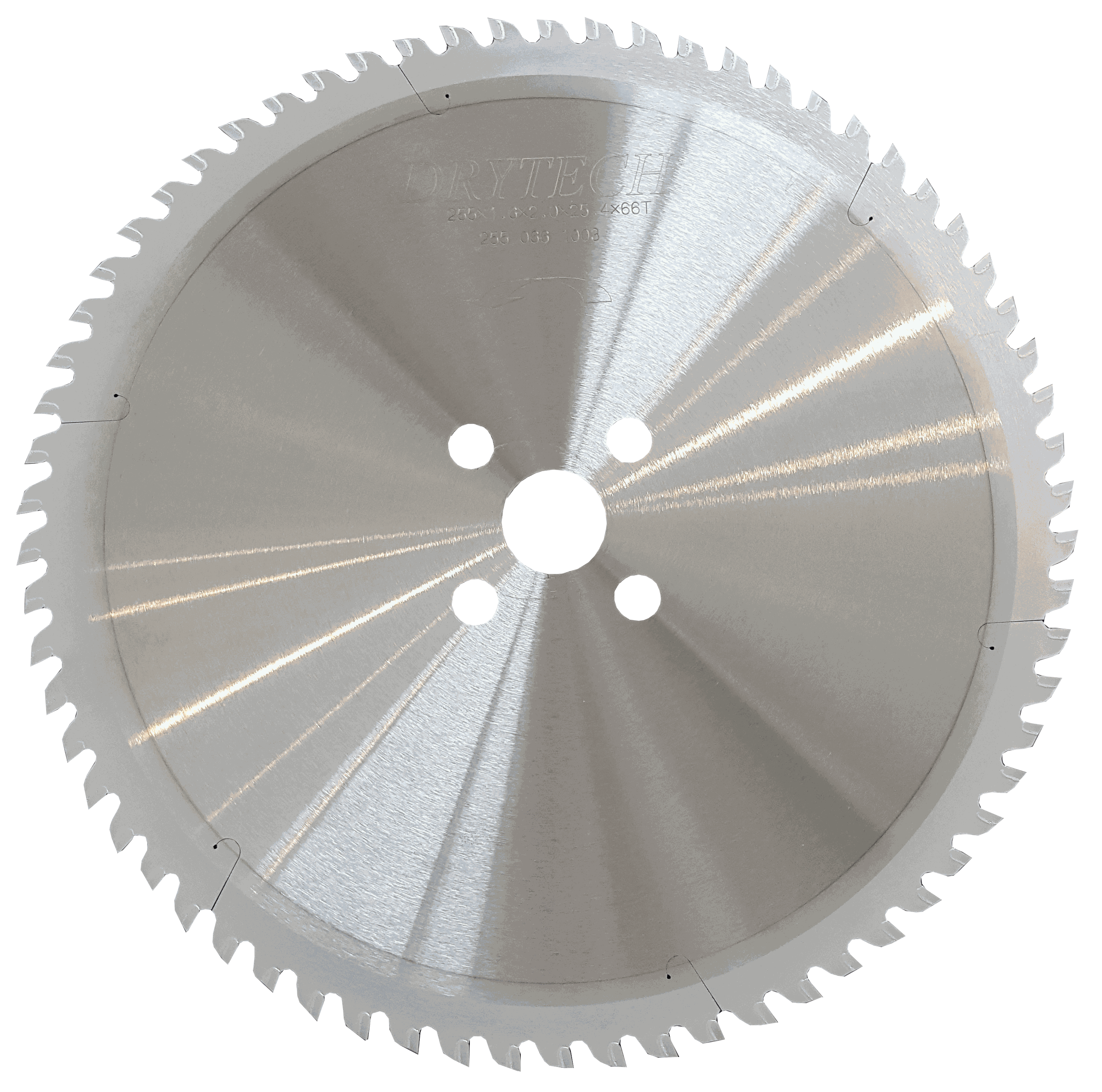

DRYTECH® carbide tipped saw blades Ø255mm for DMC 9410ND
fast and burr free cutting of metal without coolant!

ADVANTAGES OF OUR DRYTECH®
SAW BLADES:

  • Universal use on all circular saws and cut-off saws

  • Very high durability

  • Excellent cutting quality

  • Thin walled with reduced noise

  • Resharpenable

Saw blade
Application
Ø [mm] Cutting width [mm]
Blade width [mm]
Teeth
Reference
E-Shop

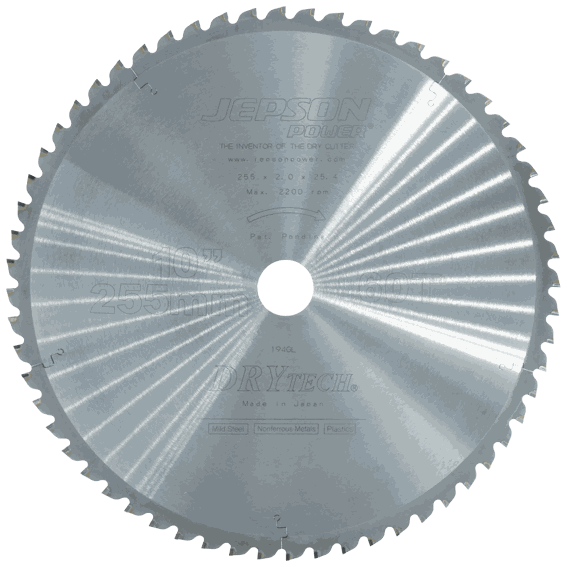

STANDARD steel 255 2 1,6 60 600598

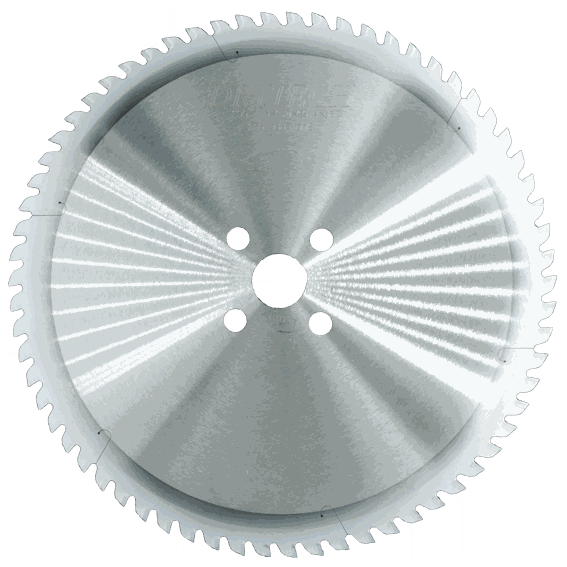

SPEZIAL-BESCHICHTET
 LEARN MORE
stainless steels & steel, food & construction
255 2 1,6 66 600654NSF

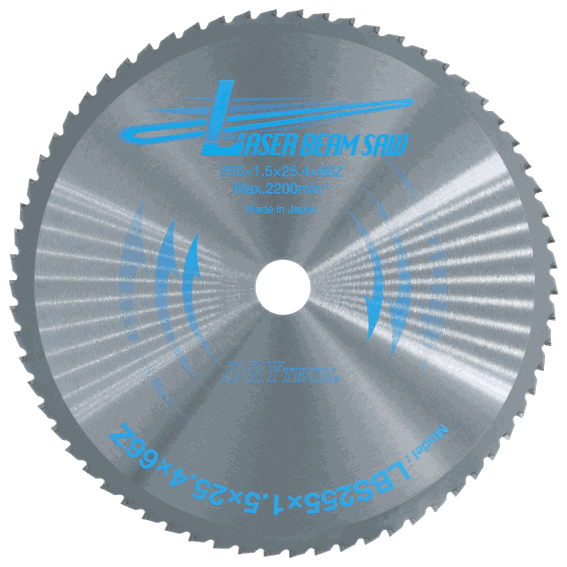

LBS SCHOCK-RESISTENT
 LEARN MORE
metal grids & grates 255 1,5 1,2 66 72225566
FOR THIN WALLED MATERIAL
thin walled steel 255 2 1,6 66 600654
FOR ALUMINUM
aluminum 255 2,2 1,6 80 600655A
