PRODUCTION UNIT with PSDC 9435
For small serial production at 90°

Odoo • Image and Text
LEARN MORE ABOUT OUR
PSDC 9435
1. material feed roller conveyor length 3m
with 3 height-adjustable supports
2. cutting unit incl. Premium Super Dry Cutter 9435
 and saw blade
3. m​aterial discharge roller conveyor length 3m
 with 3 height-adjustable supports

3A variant: ANALOG with analogue measuring range display
3B variant: DIGITAL with digital measuring range display
_________________________________________________

3m feed roller and measuring track for aluminum and steel profiles plastic
3m discharge roller and measuring track for aluminum and steel profiles and plastic
Web width 390mm, idler width 300mm
Support roller pitch ~290mm, load capacity per meter of roller track ~100kg
Web height adjustable from 760-1,100mm





DATA SHEETS

VARIANTS

Odoo • Image and Text

Production Unit 3A with analog measurement indication

Ref. 609960A

Odoo • Image and Text

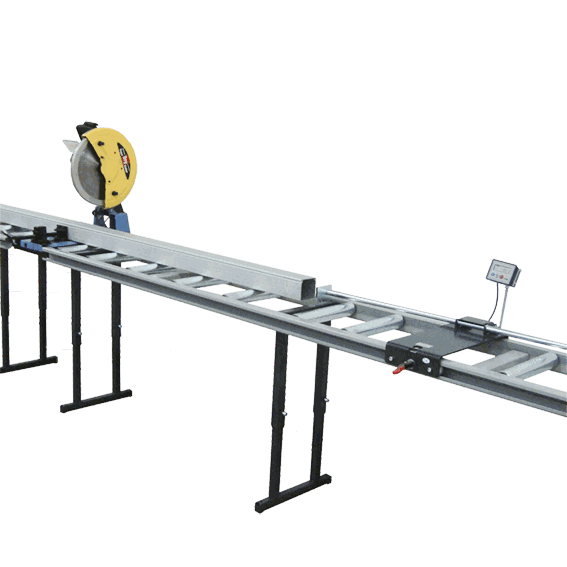

Production Unit 3B with  digital measurement indication

Ref. 609960B

ACCESSORIES (optional)

Odoo • Image and Text

Additional input roller track 3m

Other sizes available on request

Ref. 609960


Odoo • Image and Text

Quick-release vice

For serial cutting at constant diameter / size


Ref. 1501128
