MAGPRO 50/2S
Optimum core drilling with 2 speeds - core drilling up to Ø 50 mm
-
Perfect core drilling with 2 speeds
-
Accurate core drilling upt to Ø 50 mm
-
Powerful 1.800 watt motor with huge traction power
-
High class gearbox for switching between 2 speeds
-
Delivery in suitcase with safety chain and main-tenance tools
|
Power input |
1.800 W
|
|
Voltage |
230V/50Hz or 115V/60Hz
|
|
Magnetic adhesion |
32.000N |
|
Net weight |
22,9 kg |
|
Art.- Nr. |
490170
490171 (115V) |
DATA SHEETS & SPARE PARTS
Technical Data
| No load / Full load) |
380 / 230 rpm 500 / 300 rpm |
|
Shank |
Weldon 19 mm, M24
|
|
Max. Ø core drills x L |
12 - 50 mm x 70 mm
|
|
Max. Ø twist drills x L |
16 x 110 mm
|
|
Max. depth x Ø |
75 x 50 mm
|
|
Stroke |
100 mm
|
|
Magnetic surface |
200 x 100 mm
|
|
Cooling system |
integrated, automatic
|
ACCESSORIES
|
Product |
Description |
Ref. |
E-Shop
|
|
Core drill set 30 mm Ø 12, 14, 16, 18, 20, 22 mm with pilot pin |
490145
|
|
|

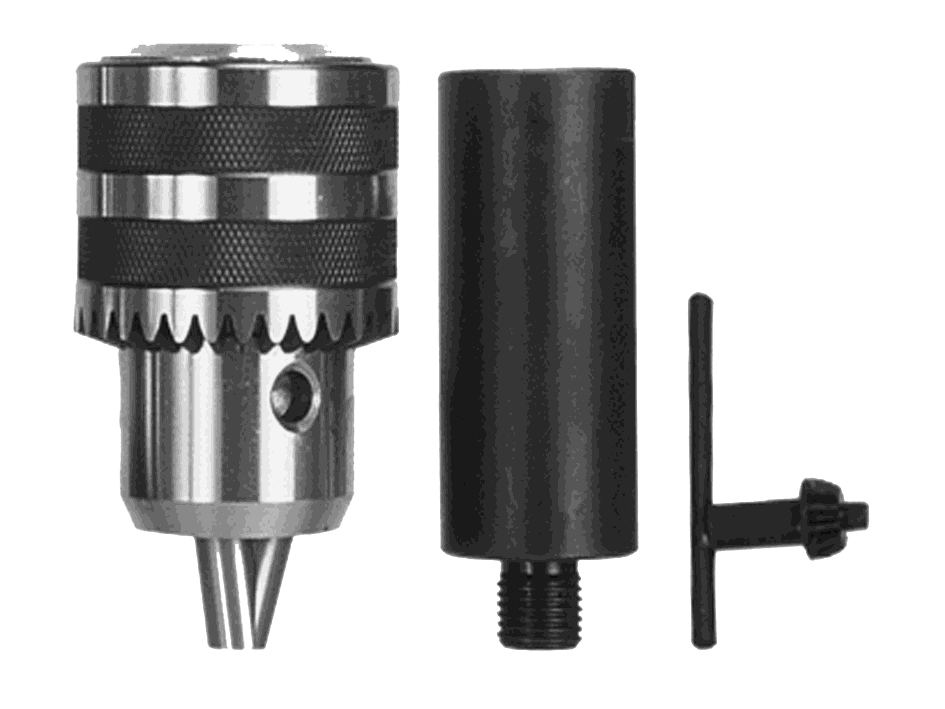

Drill chuck and adapter 16 mm
|
490173
|
|
|
Quick release for MAGPRO 50/2s
|
490172
|
|
|

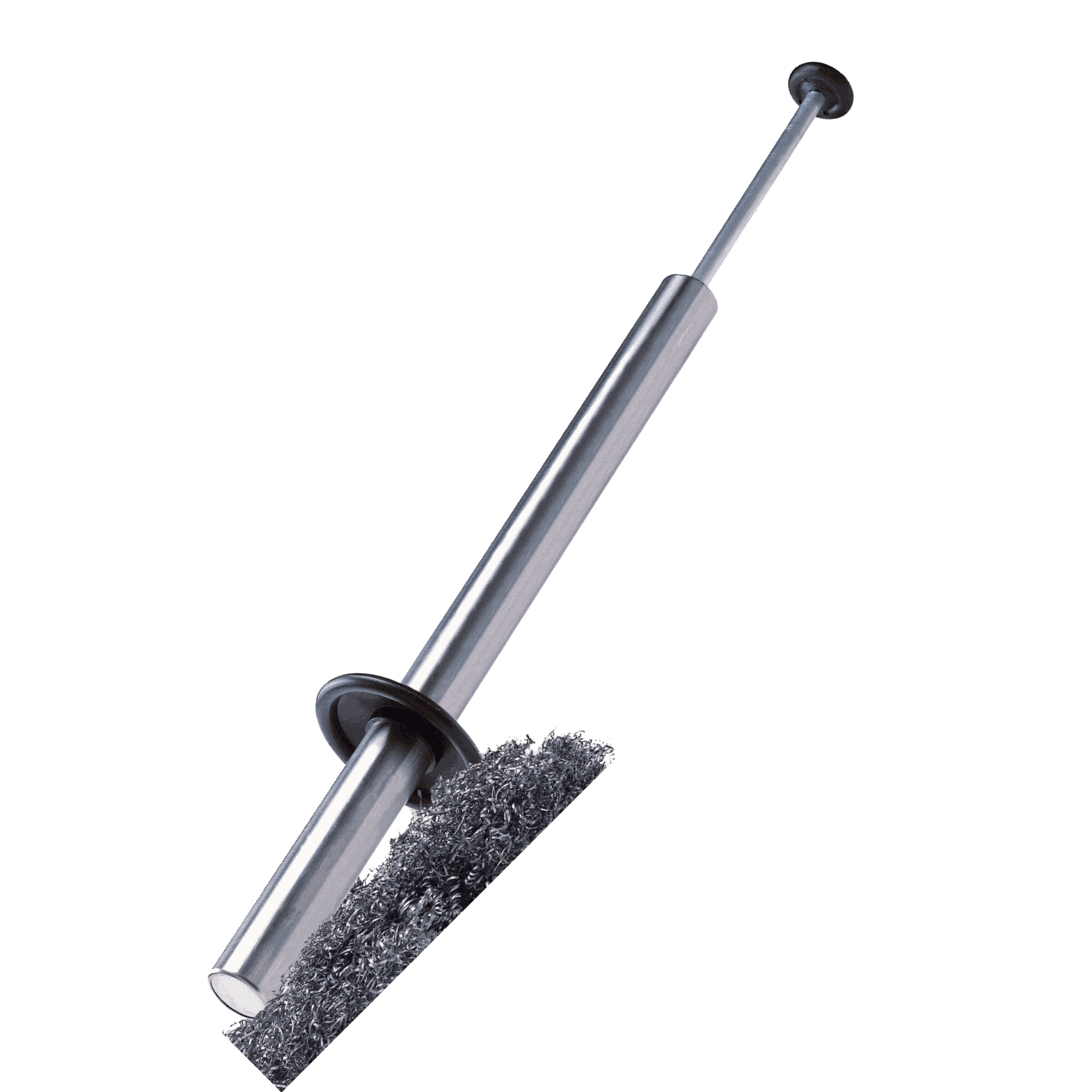

Magnetic chip collector
|
490153
|
|
|
High Performance Cutting Oil Spray for optimal cooling and higher cutting performance (400 ml) |
490020
|
|
| Pipe clamping system for pipes Ø 150 - 500 mm Flexible and fast clamping in every drilling situation for pipes up to Ø 500 mm |
490010BIG |
