MAGPRO 150 M42
Magnetic drilling machine with 4 gears and 8 speeds
Core drilling up to Ø 150 mm
- Core drilling up to Ø 150 mm
-
Tapping up to M4-M42
-
Twist drilling up to Ø 32 mm
-
Heavy duty reversible motor unit
-
Maximum stability without additional support
-
Overvoltage protection
-
Supplied in a case with core drill holder, safety chain, carabiner and Allen key
|
Power input |
2.400 W
|
|
Voltage |
230 V / 50 Hz
|
|
Magnetic adhesion |
20.500 N |
|
Net weight |
42 kg |
|
Ref. |
491150N
|
DATENBLÄTTER
Technical Data
|
4 Speeds (no load / full load) |
1: 80 / 60 min-1 2: 165 / 125 min-1 3: 275 / 205 min-1 4: 545 / 410 min-1 |
|
Shank |
MK4, 19/32 mm Weldon
|
|
Max. Ø core drills x L |
150 mm
|
|
Twist drilling max. Ø x L |
16 x 110 mm 46 x 150 mm |
|
Stroke |
300 mm
|
| Magnetic base | 270 x 135 mm |
|
Dimensions
|
630 (930) x 210 x 390 mm
|
|
Cooling system |
integrated, automatic |
ACCESSORIES
|
Product |
Description |
Ref. |
E-Shop
|
|
HSS-Co core drill set 30 mm Ø 12, 14, 16, 18, 20, 22 mm + ejector pin
|
490145
|
|
|
Carbide-tipped core drill set 30 mm Ø 12, 14, 16, 18, 20, 22 mm + ejector pin |
490148 |
|
|
Gold Finger Core drill set TiN coated 30 mm Ø 12, 14, 16, 18, 20, 22 mm + ejector pin |
490145TiN
|
|
|
HSS-Co core drill set Ø 9/16", 5/8", 11/16", 3/4", 13/16", 15/16" + ejector pin |
490145IN
|
|
|

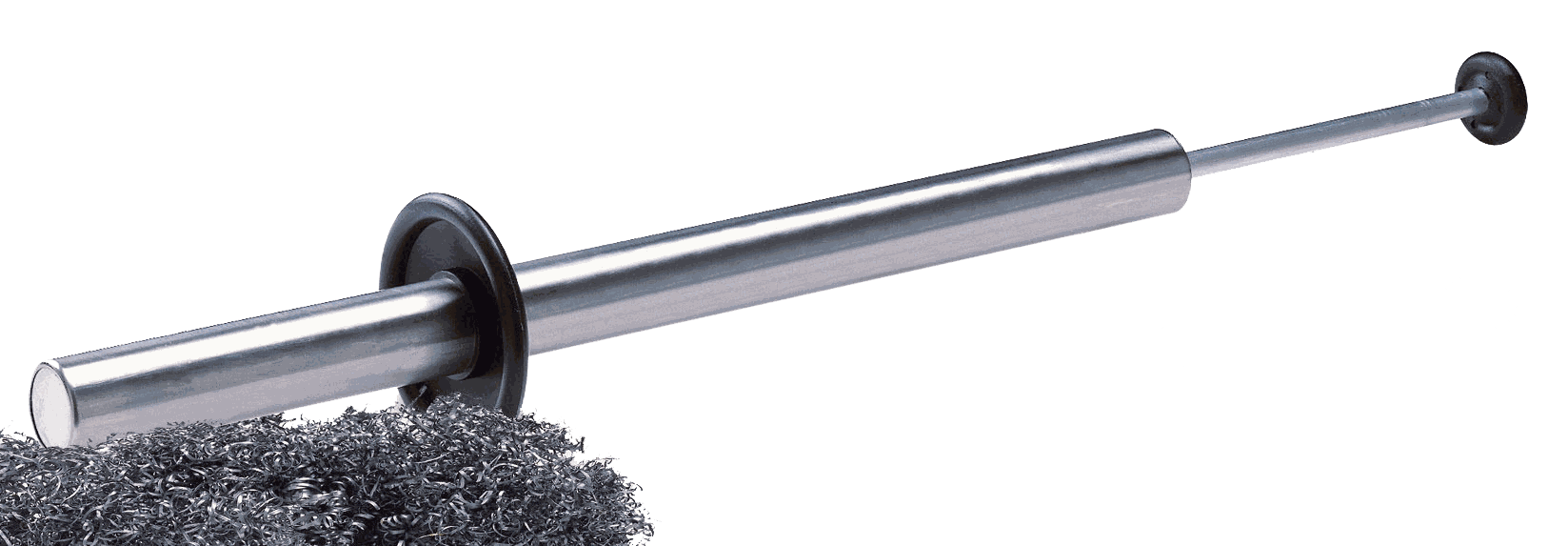

Magnetic chip collector |
490153
|
|
|
High-performance drilling and cutting oil spray for optimal cooling and higher cutting performance (content: 400 ml) |
490020
|
|
