PSDC
9435 with 355/90T saw blade 220V
PSDC 9435 with 355/90T saw blade 115V
Stand for PSDC 9435 & PDC 9430
Thinfix - clamp for open profiles Saw blades
355/90T for thin steel and stainless steel
355/72T for medium steel & stainless steel
355/60T for thick steel & stainless steel
355/60T for cast iron
355/66T for mild steel
355/108T for aluminium
Item
DescriptionFeaturesSpecificationsMaximum
cutting capacities in mm2200
W
220V/50 Hz or 115V/60Hz
1300 rpm
25 kg
355 mmPower
input:
Voltage:
Speed:
Net weight:
Blade size:•
Cuts ferrous and non-ferrous metal, mild steel,
stainless steel, aluminium & plastic
• No need of lubricant and manual deburring
• Exclusive blade stabilising system
reduces vibration
• High torque motor for continuous operation
• CE approved operating system
• Patented quick-release vice
• Heavy duty 0 - 45 degree vice
• Fitted with a 90T saw blade
• Optional stand for a save work place100
PDC
9430 with 305/60T saw blade 220V
PDC 9430 with 305/60T saw blade 115V
Stand for PSDC 9435 & PDC 9430
Thinfix - clamp for open profiles Saw blades
305/60T for steel, non ferrous metal
and composites
305/60T for cast iron
305/66T for thin pipes and profiles
Item
DescriptionFeaturesSpecificationsMaximum
cutting capacities in mm2000
W
220V/50 Hz or 115V/60Hz
1500 rpm
23 kg
305 mmPower
input:
Voltage:
Speed:
Net weight:
Blade size:•
Cuts ferrous and non-ferrous metal, mild steel,
aluminium & plastic
• No need of lubricant and manual deburring
• High torque motor for continuous operation
• Gear box for easy blade changes
• CE approved operating system
• Patented quick-release vice
• 0 - 45 degree vice
• Fitted with a 60T saw blade
• Optional stand for a save work place85
85 x 85
85 x 85
Ø
Ø
115
100 x 100
85 x 160Round
Square
Rectangular45°
Bevel cutting90°
Cutting
DMC
9211D with 255/60T saw blade 220V
DMC 9211D with 255/60T saw blade 115V
Saw blades
255/60T for mild steel
255/66T for stainless steel
Stand for Dry Miter Cutter
Item
DescriptionFeaturesApplication
fields Metal
builders, carpenters,
interior builders etc.SpecificationsMaximum
cutting capacities in mm1500
W
220V/50 Hz or 115V/60Hz
1900 rpm
25 kg
-45° - 0° - +45°
255 mmPower
input:
Voltage:
Speed:
Net weight:
Mitre cut:
Blade size:•
Ideal for the sawing of stainless steel, steel, non-
ferrous metal, plastic and composite materials
• Accurately adjustable mitre cut of -45° - 0°
- +45°
• Secure fixing with double clamping system
• Fitted with a 60T saw blade
• Optional stand for a save work place50
50 x 40
60 x 40
Ø
Ø
50
50 x 50
85 x 50Round
Rectangular with
vice
without vice45°
Cutting90°
Cutting
COS
9515 T2 with Ø 355mm abrasive
wheel for metal 220V
COS 9515 T2 with Ø 355mm abrasive
wheel for metal 115V
Abrasive wheel for metal (20 pieces per
packaging)
Item
DescriptionFeaturesSpecificationsMaximum
cutting capacities in mm2500
W
220V/50 Hz or 115V/60Hz
3500 rpm
17 kg
355 mmPower
input:
Voltage:
Speed:
Net weight:
Blade size:•
High performance motor
• Hardened steel gears for durability
• Special designed gear box improves cooling,
air flow and debris dispersal
• Ergonomic design for easy transportation
• Quick release vice swivels for 45 degree cuts
• Fitted with cutt-off wheel
• Quick release
• CE approved operating system100
102 x 102
85 x 100
Ø
Ø
115
115 x 115
75 x 200
102 x 155Round
Square
Rectangular 45°
Cutting90°
Cutting
608219
608220
719240
719248
719248A
719270
Hand Dry Cutter 8219 230V with
saw blade 192/40T
Hand Dry Cutter 8219 115V with
saw blade 192/40T
Cermet TCT saw blades
192/40T standard
192/48T for thin plates
192/48T for aluminium
192/70T for thin sheet metal
Item
DescriptionFeaturesSpecificationsMaximum
cutting capacities in mm
1400 W
230V / 50 Hz or
115V60Hz
3800 rpm
4,8 kg
192 mm
5m
Power
input:
Voltage:
Speed:
Net weight:
Blade size:
Cable:•
Cuts steel, aluminium, non-ferrous metal and plastic without
coolant, sparks, burrs and heat
• Fitted with a Ø 192/40T resharpenable Cermet
TCT
blade for highest cutting lifes at a high cutting
quality
• Use of magnesium for strong and light construction
• Chip collector for clean work
• No need of lubrication
• Maximum cutting depht 65 mm and thickness 7 mm
• CE approved operating system 65
65 x 65 x 7
65 x 65 x 3
65
7 Cutting
depht
Angle
Square
Round
Platespare
parts

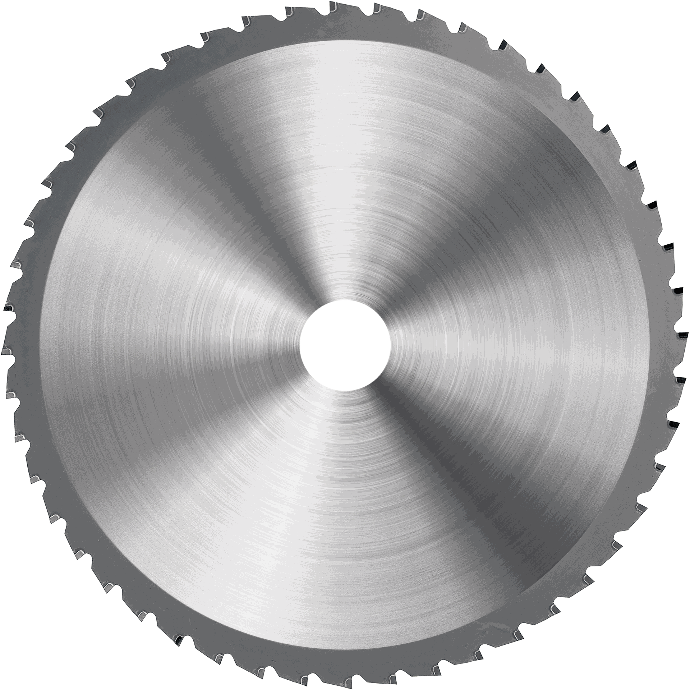

TANITEC Carbide tipped saw blades for metal
Ideal for the sawing of steel, non-ferrous metals,
plastics and composites materials
Achieve nearly burr free cuts fast and with out
the use of lubrification
Suit on all hand held saws and circular saws due
to standard sizes and reduction rings
Large assortment for different applications
Very high tool life, resharpenable and excellent
cutting quality
Power
input:
Voltage:
Speed:
Bevel angle:
Max. bevel height (45°):
Smalest inner Ø:
Net weight:
Specifications
1.200
W
230 V / 50Hz
3000 - 6000 rpm
30° and 45°
6 mm
22 mm
4,7 kg
•
Variable speed for working with a variety of materials like
steel, stainless steel,
nonferrous metal, brass and plastic
• Complete with 30° & 45° tools and carbide
inserts
• Excellent for following curved shapes
• Uses standard triangle carbide inserts
• Quick and easy tool-free bevel depht setting
• Protection against overheating
• Overload limitation

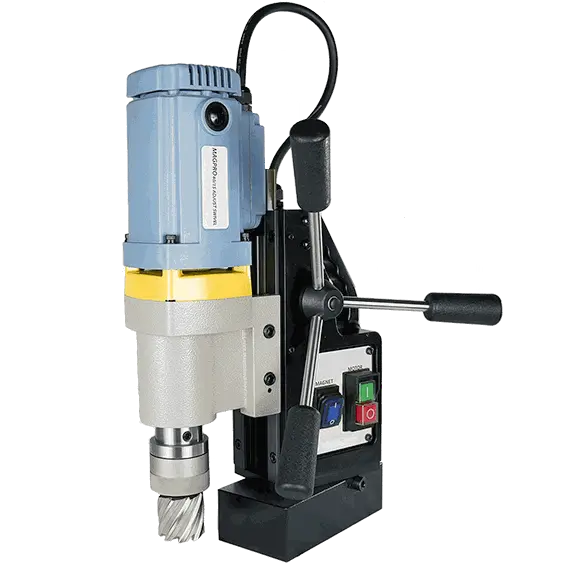

MAGPRO
35 incl. drill chuck and adapter 230V
MAGPRO 35 incl. drill chuck and adapter 230V
30 mm core drills Ø 12, 14 16, 18, 22 and pilot
MAGPRO 35 as above with 115V
MAGPRO 35 set as above with 115V
Drill chuck and adapter
Quick release for MAGPRO 35
Specifications
Power
input:
Voltage:
Core drills Ø:
Max. twist drill Ø:
Max. cutting depht x Ø:
Shank:
Speed / Load speed:
Magnetic adhesion:
Net weight:
Cooling system:
1.100
W
230V/50Hz or 115V/60Hz
12 - 35 mm
13 mm
50 x 35 mm
19 mm Weldon
620 / 350 rpm
15.000 N
12 kg
integrated, automatic
1.800
W
230V/ 50Hz
12 - 75 mm
16 mm
75 x 75 mm
19 / 32 mm Weldon
210 / 120 rpm
270 / 160 rpm
410 / 290 rpm
530 / 310 rpm
32.000 N
24,8 kg
integrated, automatic

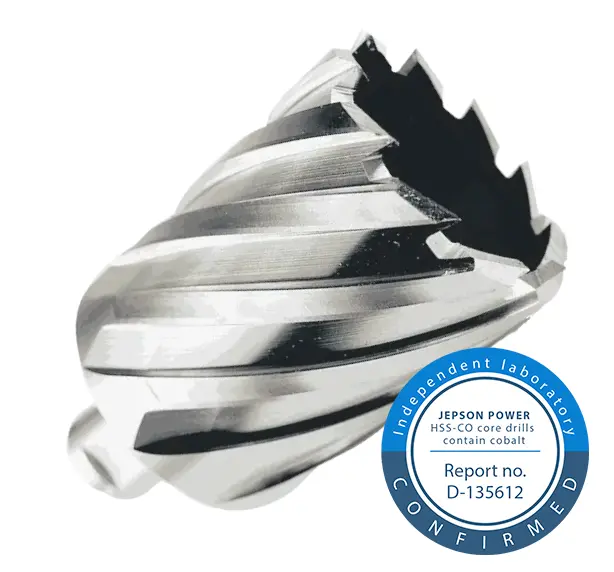

HSS core drills 30 and 50 mm long,
Ø 12-130 mm
Fully ground core drills made of high speed steel.
The high quality surface finish achieves a long
cutting life of the tools.
608280
72123048
72123060
72123068
72123084
Hand
Dry Cutter 8230 with
saw blade 230/48T + Box Saw blades
Saw blade 230/48T standard
Saw blade 230/60T for aluminium
Saw blade 230/68T for thin walled
material
Saw blade 230/84T for thin sheet
metal & sandwich panels
Item
DescriptionFeaturesSpecificationsMaximum
cutting capacities in mm1700
W
230V / 50 Hz
2600 rpm
7,1 kg
230 mm
5mPower
input:
Voltage:
Speed:
Net weight:
Blade size:
Cable:•
Cuts steel, aluminium, non-ferrous metal and plastic
without coolant, sparks, burrs and heat
• Fitted with a Ø 230/48T resharpenable TCT saw
blade
for highest cutting lifes at a high
cutting quality
• Strong and light construction
• Chip collector for clean work
• No need of lubrication
• Maximum cutting depht 84 mm and thickness 10 mm 56
56 x 8
56 x 4
56 x 4
884
84 x 84 x 10
84 x 84 x 5
84 x 5
10Cutting
depht
Angle
Square
Round
Plate45°
Bevel cutting90°
Cuttingspare
parts
MAGPRO
35 Semi Automatic
Drill chuck and adapter
Quick release for MAGPRO 35 Semi Automatic
Specifications
Power
input:
Voltage
Core drills Ø:
Max. twist drill Ø:
Shank:
Speed / Load speed:
Capacity Ø x depht:
Magnetic adhesion:
Net weight:
Cooling system:
1.100
W
230V/ 50Hz or 115V/60Hz
12 - 35 mm
13 mm
19 mm Weldon
620 / 350 rpm
35 mm x 50 mm (Hand feed)
30 mm x 45 mm (Auto feed)
13 mm x 110 mm (Hand feed only)
15.000 N
17 kg
integrated, automatic
No load / Full load speed:
No load / Full load speed:
Magnetic adhesion:
Net weight:
Cooling system:
Optional small range tapping & drill chuck (clamping
3-10mm)
1.100
W
230V/ 50Hz or 115V/60Hz
35 x 50 mm (Core drilling)
15 x 80 mm (Twist drilling)
19 x 40 mm (Thread cutting)
19 mm Weldon
8-15 mm Drilling
up to 19 mm Tapping
90 / 54 rpm (Tapping mode)
550 / 330 rpm (Drilling mode)
15.000 N
13,7 kg
integrated, automatic
